AS 585 EKM
4,1/5,5 kW/PS
Einsätze
-
Mulching is a process by which grass cuttings are shredded several times into a fine mulch, which then remains on the surface as natural fertiliser. Special mulching blades with a double cutting plane and a circular mulching unit are used on ornamental lawns, while cross-blade systems or flail mowers are primarily used in high grass.
-
Ornamental lawns in both private gardens and public facilities can be maintained with either mulching or collecting mowers. When mulching, the finely-shredded cuttings remain on the surface as natural fertiliser, while collection bags help the operator transport cuttings to a disposal point. Lawns are usually mowed once per week to a cutting height of 40–50 mm, from a maximum height of 15 cm.
-
Flower meadows are structurally rich habitats that are extremely important for insects, wild bees, and species that depend on flowers. The key is not to mow frequently, but to cut at the right time. Before the flowering phase, the vegetation can quickly reach heights of 30–40 cm. After that, maintenance is carried out at longer intervals, usually once or twice a year. This form of extensive use requires machines that can safely cut tall, heterogeneous vegetation without putting unnecessary strain on the area. Clean cuts, controlled deposition, and an adapted driving style are essential for preserving plant populations and enabling regeneration.
-
Extensively used meadows such as orchards, compensation areas, or roadside greenery are deliberately mowed only once or twice a year. The vegetation reaches heights of 60 to over 100 cm and forms dense, structurally rich stands. This form of maintenance serves to keep the area open and suppress woody plants, not to maintain the lawn. Machines with high throughput, uniform cutting performance, and controlled deposition of the cut material are required. This is the only way to efficiently manage large amounts of biomass without overloading the area or damaging the soil and vegetation.
-
Without maintenance, open areas quickly become overgrown with blackberries, clematis, and young trees. In young forests, reforestation areas, or Christmas tree plantations, targeted brush clearing is necessary to secure the desired structures and reduce competition. It is crucial to use maintenance methods that intervene selectively and do not destroy large areas. Mechanical flail mowing technology makes it possible to remove woody growth and vigorous shrubs without unnecessarily damaging the soil structure and root space. This ensures that areas remain usable and ecologically stable in the long term.
-
During the mowing season, professional operators often run their machines 5 days per week, 8 hours per day. AS-Motor’s machines are unbeatable in terms of quality, durability and professional work results. Additional advantages include low weight, lashing points and compact transport dimensions.
-
Animal burrows, anthills, mole hills and water channels cause uneven terrain. Several AS-Motor machines have high ground clearance, all-wheel drive and limited slip differential, along with appropriately studded field tyres, for uneven terrain.
-
AS-Motor engineers machines with high ground clearance, steep ramp angles, low overall weight, optimal weight distribution and a low centre of gravity to perform on slopes.
-
All-wheel drive not only ensures performance on inclines over 30 degrees, but also a high level of safety for travel downhill. All-wheel drive delivers propulsion in wet conditions and on uneven terrain – even if the wheels of one axle no longer have traction.
-
Remote controlled devices make the mowing of extreme slopes possible. This technology also allows the operator to mow at a safe distance from dust, wasps, ticks and other hazards.
-
The AS 50’s high work rate delivers efficient weed removal on large and uneven surfaces such as a car parks, commercial areas and paths. A collection bag eliminates the need for sweeping and surface cleaning.
-
Cobblestones and uneven paved areas can be treated for weeds, without the use of chemicals, using mechanical methods. The agile AS 30 is designed for work close to edges, water inlet channels, manholes and on traffic islands with posts and signs.
-
-
-
-
-
-
-
-
-
-
-
-
Ecological mowing and extensive land management focus on reduced, targeted interventions instead of blanket mowing. Cutting heights, timing, and maintenance intervals are based on vegetation development and site conditions, not on maximum area coverage. Sub-areas are mowed on a rotating basis, while others are deliberately left untouched. This creates varying growth heights, refuges, and stable structures on extensive meadows, compensation areas, municipal green spaces, and in landscape management. Technology is used for control, not intensification.
-
-
The battery-powered disc mower - emission-free and easy to handle
The AS 585 KM turns forage production for animals into an efficient and convenient task by embracing the principle of drum mowing: four flexible, swinging knife blades are fastened to the lower end of a drum and press outward when it rotates, cutting high grass up to 60 cm high a few centimeters above the ground. The long grass is then deposited in swaths for easy collection. A four-stroke OHV engine XP 200 with 196 ccm displacement and up to 4.8 hp combined with a 62 cm cutting width delivers work rates reaching 1,500 m² per hour.

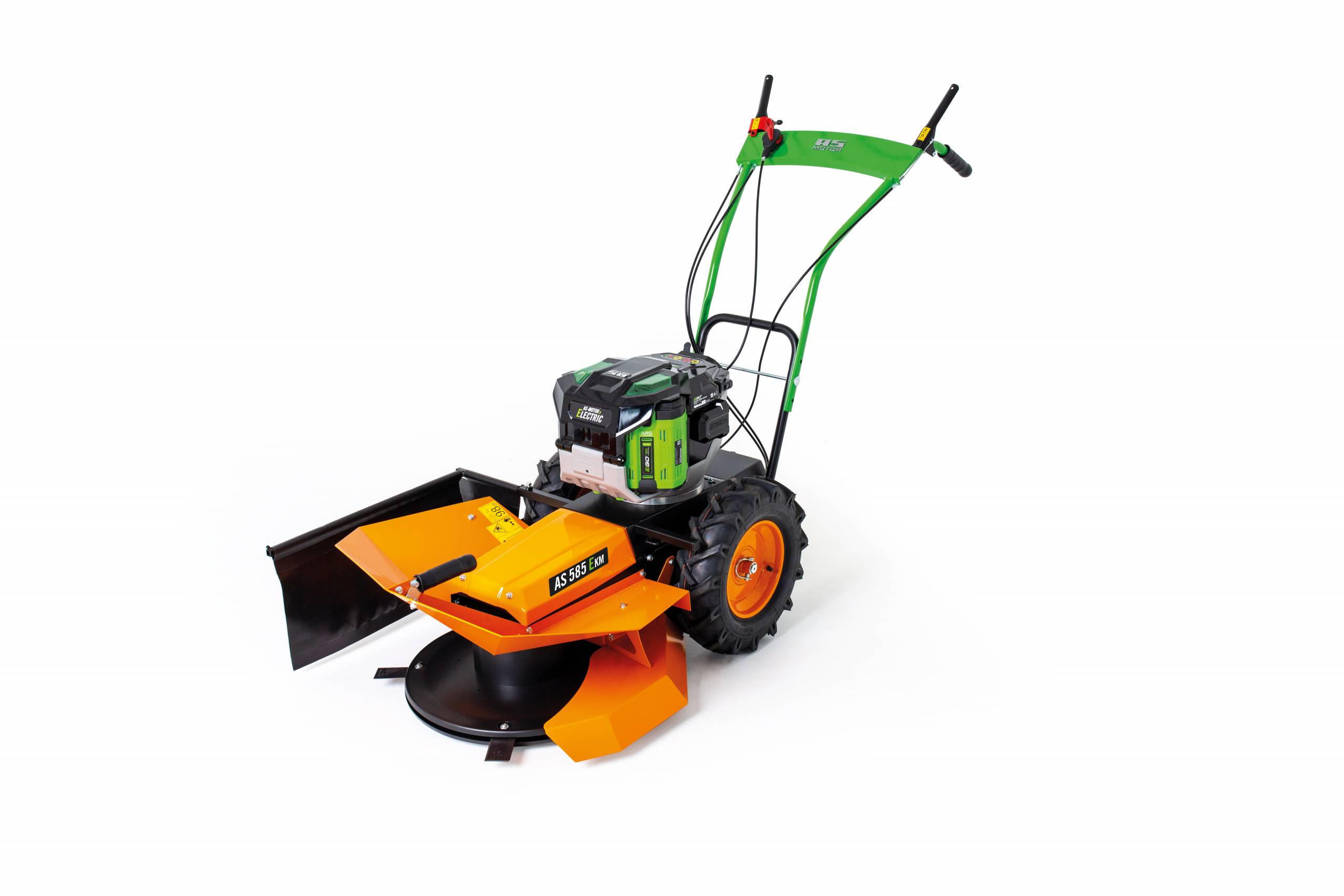

Emission-free fodder and hay production with the new AS 585 E-KM rotary mower
The 56 volt AS-Motor Electric drive has the power of a conventional 200 cm³ 4-stroke combustion engine. Two professional portable 56 V batteries with 12 Ah each supply it with energy. That is an enormous 1,344 Wh of energy content. The drive unit can cope with power peaks without switching off. The intelligent “Power-Peak” system balances the connected batteries in parallel. The externaly mounted batteries in the patented ARC-shape are excellently protected against overheating. Important when mowing hay in the hot summer
The drive function is operated via a lever with a forward speed of 2.4 km/h. The rear wheels’ differential can be locked manually to increase propulsion in difficult terrain, while the guide bar can be adjusted to the operator’s height for comfortable work, or unhinged for simple transport. This means that the AS 585 E-KM rotary mower can also be transported in a slightly larger car.
An outstanding price-performance ratio and low-maintenance operation make the AS 585 E-KM a convenient and efficient tool for forage production.
Product advantages
Thanks to battery power the device can be used in areas that are sensitive to noise and emissions.
56 Volt system with two times 12 Ah Li-Ion batteries. 3.460 watts maximum power and 1.344 watt-hours energy capacity.
The cut grass is deposited in swaths, enabling fast and easy collection.
Vibration-free operation makes the work much more pleasant when compared with bar mowers.
Outstanding price-performance ratio and extremely low-maintenance.
Easy handling during the operation and compact transport dimensions.
Produktdetails
AS-Motor Electric Drive
Most powerful Electric drive on the market. 56-volt, 3,460 watts maximum power. Two battery slots, active cooling and two operating speeds.
Mower unit
Stable mowing plate with hardened reversible double-sided blades, sharpened on both sides.
Lockable differential
Rear wheels with studded tyres and manually lockable differential for excellent propulsion.
Guide bar
Guide bar can be adjusted to the individual work height.
Technische Daten
Zubehör
Operating hour meter
Documentation of work hours.
Tilt meter
Convenient display of slope incline.
Liquide tyre sealant “Plattfuss-Stop”
Reduces the failure times due to flat tyres (950ml)
» weiterlesen
Liquide tyre sealant “Plattfuss-Stop”
Reduces the failure times due to flat tyres (20 litres); can only be used in conjunction with the pump
» weiterlesen
Pump for tyre sealant
For filling the tyre sealant "Plattfuss-Stop"; only necessary in conjunction with 20 l container
AS-Motor Electric Battery 56 Volt 10 Ah
High-performance Li-ion battery 56 Volt 10 Ah, 560 Wh, back battery 28 Ah, 1,568 W.
AS-Motor Electric Battery 56 Volt 12 Ah
High-performance Li-ion battery 56 Volt 12 Ah, 672 Wh.
Quick charger for AS-Motor Electric battery 56 Volt 550 Watt 7,5/10/12 Ah
Charging time 10 Ah 0-100 % in 70 min.
Quick charger for AS-Motor Electric battery 56 Volt 700 Watt 10/12 Ah
Fast charger 700W for minimum charging time. Charging time 10 Ah 0-100% in 60 min.
