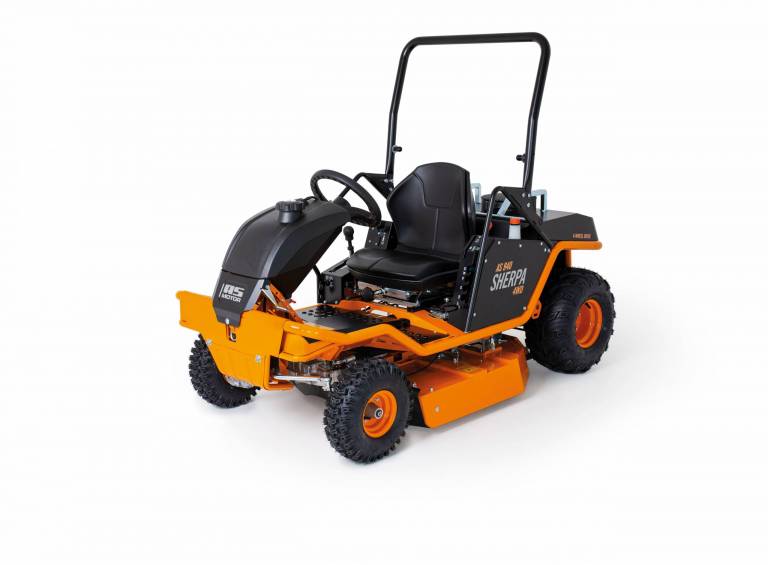

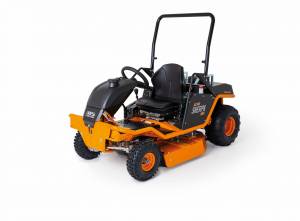

AS 940 Sherpa 4WD B&S

Einsätze

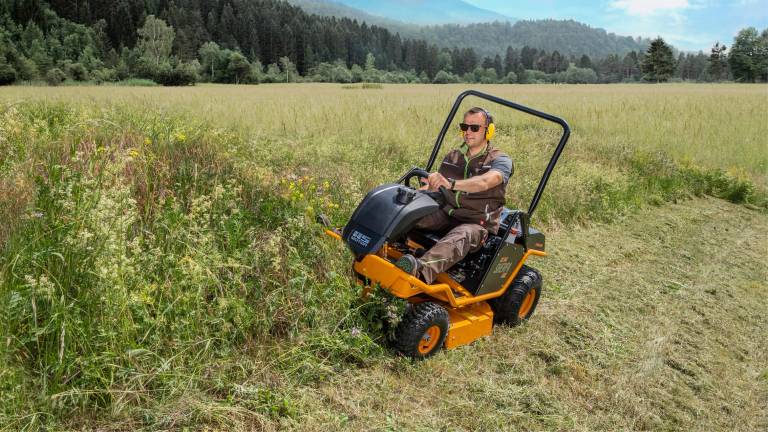

High-grass, ride-on mower with permanent all-wheel drive

The AS 940 Sherpa 4WD is a robust, versatile ride-on mower for difficult terrain and high growth. The machine’s 2-cylinder Briggs & Stratton engine with 724 ccm displacement, up to 27 hp and an oil and fuel pump achieve work rates reaching 5,500 m² per hour. Permanent all-wheel drive delivers better traction uphill and stronger, safer braking downhill. The limited slip differential can be activated at any time for more safety. Hydrostatic transmission is controlled exclusively via the drive lever, which controls forward and reverse movements as well as the brake and the parking brake. An additional brake pedal returns the drive lever to neutral and automatically engages the parking brake.

Equipped with the AS cross-blade system, the AS 940 Sherpa 4WD delivers impressive mulching results in grass and dense growth up to 1.5 meters high. Bearing-supported blades cut the grass while a mulching blade positioned above them shreds the cuttings, which are then deposited between the wheels for added safety on slopes and wet grass. The mower deck’s surfing suspension yields upwards to obstacles, protecting the blades and turf from damage. Cutting heights can be adjusted to 5 levels from 50–105 cm and an option mulch kit is available for even finer mulching results.

Stability and comfort

With a highly stable tubular frame, the AS 940 Sherpa 4WD performs even under harsh conditions. Operators up to 1.9 tall can operate the machine comfortably thanks to a length-adjustable seat and seat spring package. A low centre of gravity, folding bar and branch deflectors are added safety features, while lashing points integrated in the frame enable secure transport.

The AS 940 Sherpa 4WD is engineered for continuous operation with two separate ventilation circuits for the engine and hydrostatic transmission. The engine takes in air from above and discharges it to the side, while the hydrostatic transmission takes air from the rear and discharges it downward. This system prevents overheating and ensures the machine’s long service life.

The AS-Motor all-wheel drive ride-on mowers in a new design

The all-wheel drive models of the AS-Motor Sherpa family will appear in a new design in the future. Visually, the new 2023 Sherpa 4WD models are even more attractive with a new paint finish, an additional front panel and the newly designed decals. But the new AS Sherpa 4WD high grass mowers also offer a number of technical innovations.

All all-wheel drive AS Motor Sherpa 2023 models will in future be fitted with anti-puncture tyre sealant as standard – downtimes due to flat tyres are now a thing of the past. The new fuel tank of the Sherpas offers more volume (17 litres), a larger tank opening and a level indicator as standard. The new locking mechanism of the foldable bar provides easier handling and makes the bar less susceptible to damage. There is also improved freedom of movement when operating the driving lever. In future, the protective cloth between the engine and the seat will no longer be elaborately riveted, but locked by robust magnets. Accessibility to the engine, for example when changing the oil, is significantly improved.

Product advantages

All-wheel drive (AS 940)

Permanent all-wheel drive ensures better traction uphill and stronger, safer braking downhill.

Surfing mulch-mower deck

Closed mower deck with AS cross-blade system. The main blade cuts, the cross-blade chops the cuttings. The surfing mower deck gives way upward on uneven terrain to protect against damage.

Ergonomic sitting position provides excellent driving comfort

Length-adjustable driver seat, innovative seat suspension and ergonomic sitting position provide comfort for tall operators during long work periods.

Stable tube frame

High stability and torsional rigidity with heavy load.

Optimal all-terrain mobility

Field stud tyres, switchable limited slip differential and an engine suitable for slopes ensure powerful traction on difficult terrain.

Variable hydrostatic transmission (ride-on mower)

Easy adaptation of the speed to every terrain with integrated, mechanical parking brake in the drive lever.

Stable, folding bar

Greater operator safety in the machine's limit area.

Excellent – German Design Award Winner 2023

The consistently sustainable product design of the powerful high grass mowers convinced the top-class jury of the German Design Award. In the citation it says: “The AS Sherpa 4WD was developed specifically for mowing tall grass meadows, which its striking functional design expresses perfectly. A compact ride-on mower reduced to the essentials for sustainable and ecologically oriented green maintenance.”

Produktdetails

product-image

AS mulching mower deck

Closed, surfing mower deck with cross-blade system and bearing-supported blades that yield to obstacles.

product-image

Separate air cooling supply

Separate engine air cooling and hydrostatic transmission optimize performance.

product-image

Switchable limited slip differential

Comfortable activation of the limited slip differential via foot pedal for excellent propulsion and traction.

product-image

Stable, folding bar

Greater operator safety in the machine’s limit area.

Warranty

At AS-Motor, we understand that professional users, municipalities, and property owners need more than just high-performance mowing technology – they need confidence in their investment. That’s why we go beyond industry norms to offer a warranty system that sets new standards in the landscaping sector.

Technische Daten

Schnittbreite 90 cm
Motorhersteller B&S
Motorbezeichnung Professional Series 8
4T Motor, 1-Zyl. / 2-Zyl. /
Hubraum 724 cm³
Maximalleistung 20,1/27,0 kW/PS
Nennleistung 16,5/22,4 kW/PS
Nenndrehzahl 3300 U/min.
Antrieb, 2 WD Heck / 4WD permanent /
Antrieb, Stufenloser Hydrostat
Max. Geschwindigkeit 6,2 km/h
Differentialsperre
Automatische Parkbremse
Einfachmesser / Kreuzmesser / Y-Schlegel / /
Seitenauswurf / Heckauswurf /
Geschlossenes Mähdeck
Surfendes Mähdeck
Schnitthöhe 50 - 105 mm
Tankinhalt 17 l
Sitzfederpaket, serienmäßig / optional /
Abmaße LxBxH 191x98x152 cm
Gewicht 290 kg
Änderungen und Irrtümer vorbehalten. Aus Angaben und Abbildungen können keine Ansprüche abgeleitet werden.

Zubehör

product-image

Insect scare device

The AS-Motor Insect Scare Device is an innovative mowing attachment that protects pollinators and small wildlife. Scientifically tested to increase insect escape rates, it ensures sustainable mowing while maintaining efficiency. Designed for durability, adaptability, and easy integration with AS-Motor professional mowers.

» weiterlesen
product-image

Trailer

Cargo area: L = 1071 mm, W = 607 mm, panel height: 274 mm. Permissible total weight: 100 kg. Rear panel can be removed.

product-image

Trailer hitch (Sherpa)

For connecting the AS trailer.

product-image

Snow blade

Width: 1107 mm, height: 348 mm. Adjustable on both sides.

product-image

Mulch kit (Sherpa)

For even finer mulching and more uniform cutting results on lawns with grass up to 40 cm high.

product-image

Snow chains

Cross-track chain for the drive wheels.

product-image

Twin wheels (Sherpa)(Old)

One pair (2x2) of rear twin tyres with extreme tread pattern for highest traction.

product-image

Tilt meter

Convenient display of slope incline.

product-image

Steering knob

Facilitates one-handed steering and maoeuvring on level terrain.

product-image

Liquide tyre sealant “Plattfuss-Stop”

Reduces the failure times due to flat tyres (950ml)

» weiterlesen
product-image

Liquide tyre sealant “Plattfuss-Stop”

Reduces the failure times due to flat tyres (20 litres); can only be used in conjunction with the pump

» weiterlesen
product-image

Pump for tyre sealant

For filling the tyre sealant "Plattfuss-Stop"; only necessary in conjunction with 20 l container

product-image

XL wheel kit

Wheel kit with track extension for 30mm more ground clearance.

product-image

Spacer Sherpa

Spacer for replacing the upper mulching blade. Advantageous in fibrous vegetation or for higher mowing speed in dense vegetation.

product-image

LED headlights

Two high power 18W LED headlights, with mount, switch and cable.

product-image

Grass-winding protection

Avoids tangling of long and thin grass between wheel and front axle.
